Current location:Home / Product / Bag machine / RG-2D800 heat-sealed cold-cut single-layer bag making machine
Products Show
Product Details
Performance: the main can be cut PE, PP, industrial bags, supermarket bags, vest bags, flat pocket.

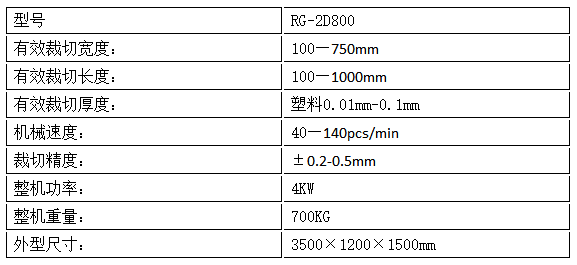

Technical Parameters:
The main technical parameters and configuration:
1, the host part:
① host motor: 1.5KW, Shanghai East East
③ can not stop high down. ,
⑤ Wuxi Xuncheng XC2005B, position controller,
⑥ Stepping motor 350A,
⑦ hybrid drive HB-B3CS,
⑧ inverter Taizhou De Fu 1.5KW.
2, temperature control sealing part:
① temperature control table Yuyao Keqiang intelligent digital display,
② sealing knife 62 # copper,
③ base with heating.
3, put the feed part
① before feeding roller diameter ⊙ 62MM,
② after the discharge roller diameter ⊙ 62MM,
③ after discharge motor Wuhu DS production,
④ DC motor 400W,
⑤ light eye tracker 1, dragon tour dragon production
4, cutting blade high wear-resistant alloy steel Maanshan five-star production
① static eliminator
② before the feeding site 1,
③ post-feeding site 1
100 width punch 1 set 8 large, round type
The appearance, technical parameters, performance and features of the machine are subject to change without notice. Without the express written permission of Ruiguang company, may be reproduced or the dissemination of relevant information
